Spray Paint Cast

A: A painted cast part refers to a metal part that is formed through casting, then undergoes a series of surface treatments (such as shot blasting, cleaning), and finally undergoes painting. Essentially, it is a combination of the "casting" and "painting" processes.

A: There are mainly three reasons for this: Anti-rust and anti-corrosion: Castings (especially cast iron castings) are prone to rusting in the air. Painting can form a protective layer, blocking moisture and air, significantly extending their lifespan. Enhancing appearance: Covering the roughness, sand holes, uneven color and other defects on the casting surface to make the product more beautiful and tidy. Special features: Offer special properties such as high-temperature resistance, chemical resistance, insulation, and warning functions.

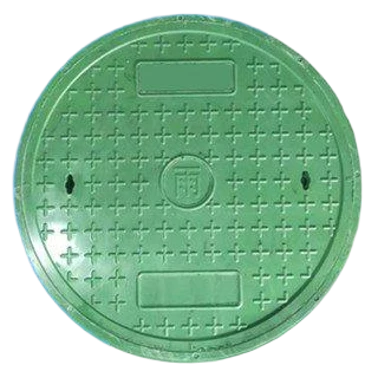

A: They are very common in daily life, for example: Automobile/Mechanical: Engine cylinder block, transmission housing, machine tool bed, motor casing. Home/Infrastructure: Frameworks for park benches, manhole covers, high-end door and window hardware, fitness equipment. Electrical appliances: Balance weights for the washing machine, support frame for the outdoor unit of the air conditioner.

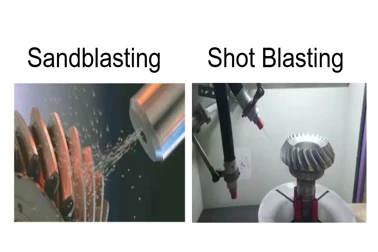

A: Pre-treatment is the key to ensuring quality. It usually includes: Shot blasting / sandblasting: Removes oxide scale and impurities, increases surface roughness, and enhances paint adhesion. Cleaning and degreasing: Completely removing oil stains. Phosphating/Passivation: Forms a conversion film, further enhancing the rust prevention ability and adhesion.

A: This depends on: Quality of the casting itself: The surface smoothness of the casting billet. Pre-treatment effect: The fineness of the abrasive used in shot blasting/sandblasting. Paint quality and craftsmanship: The leveling property of the paint, the thickness and uniformity of the spray coating, and whether it has undergone baking and curing. High-quality baked paint is usually smoother and harder.

A: The quality can be judged from the following aspects: Appearance: The paint film is uniform, thick, and has consistent color. There are no defects such as sagging, pitting, or uneven texture. Adhesion: Test by scratching with a fingernail or a small knife. The paint should not peel off in large patches. Hardness: If you use your fingernail to scratch it, the high-quality paint film should not show any obvious scratches. Corrosion resistance: Tested in a salt spray chamber, the high-quality paint can withstand no rust for dozens or even hundreds of hours.

A: They are all surface treatment methods, but they have different principles and effects: Painting: This involves applying an organic coating on the surface. The advantages are that a wide range of colors can be chosen, the cost is relatively low, and it is suitable for large items and complex shapes. The disadvantage is that the film thickness is relatively thick. Electroplating: This process involves depositing a layer of metal (such as chromium, zinc, or nickel) on the surface through electrochemical principles. The advantages include a very shiny surface, high wear resistance, and high hardness. However, the disadvantages are limited color options, high environmental requirements, and usually higher costs. Electrophoresis: This process involves immersing the workpiece in the paint solution and applying an electric current to cause the paint particles to evenly deposit on the surface. The advantages are that the coating is uniform, there are no dead areas, and the rust prevention ability is extremely strong. The disadvantage is that the color is usually relatively monotonous (mostly black or dark colors).

A: Main consideration: The usage environment: Indoor general environment: You can choose ordinary alkyd paint or acrylic paint. Outdoor exposure to sun and rain: It is necessary to choose paints with good weather resistance, such as polyurethane paint and epoxy paint. High-temperature environment (such as near the engine): Special high-temperature-resistant paints (such as silicone heat-resistant paints) should be selected. Corrosive environment (such as in chemical plants): It is necessary to select heavy-duty anti-corrosion coatings, such as a combination of epoxy zinc-rich primer and polyurethane topcoat.

A: For minor peeling, you can repair it yourself: Surface treatment: Use sandpaper to smooth out the areas with peeling paint and the surrounding rust and old paint edges, and clean them thoroughly. Apply primer: If the exposed metal substrate is present, it is recommended to apply a primer for rust prevention first. Spraying topcoat: Select a paint of a similar color for spraying. It is best to apply the paint uniformly to achieve a consistent appearance. Part Four: Cost and Environmental Protection

A: The casting itself: material cost, complexity, weight. Pre-treatment process: Processes such as shot blasting and phosphating will increase costs, but they are indispensable. Paint quality: Imported high-end paint is much more expensive than ordinary paint. Process requirements: The number of spray layers (whether a primer and a topcoat are required), and whether baking for curing is necessary.

A: Modern spray painting techniques are increasingly focusing on environmental protection: Paint type: Traditional solvent-based paints have high VOC (volatile organic compounds) emissions and cause significant pollution. Nowadays, water-based paints and powder coatings are widely adopted. Water-based paint: Uses water as the diluent, with extremely low VOC emissions. Powder coating: It is a 100% solid coating without solvents. It is recyclable and highly environmentally friendly. Waste gas treatment: Regular factories will be equipped with waste gas treatment equipment to purify the waste gas generated during spraying before releasing it.
