The core advantages of the Aluminum alloy housing assembly
Material performance advantages
Lightweight (reducing weight by over 60% compared to steel parts), excellent thermal conductivity (improving equipment heat dissipation efficiency), tensile strength ≥ 220 MPa, hardness ≥ 80 HB. After passivation treatment, salt spray test can last up to 48 hours. Aluminum alloy can be 100% recycled, meeting green production standards.
Precision die-casting process advantages
Cold chamber high-pressure die-casting realizes integrated molding of complex structures, reducing processes by 50%; dimensional tolerance controlled at IT10 - IT12 level, deviation of key parts ≤ ±0.03mm; single mold cycle 15 - 30 seconds, yield stable at over 98%, suitable for large-scale mass production.
Functional structure design advantages
Integrated installation holes, ventilation holes, positioning holes and other multi-specification functional holes are provided, with mortise and tenon joint slots reserved, with gap ≤ 0.05mm; internal reinforcing ribs are set, improving deformation resistance by 40%, and can be adapted to equipment assembly without secondary processing.
Technical Parameter Details
| Project | Specification Parameters |
| Product Name | Aluminum alloy housing assembly |
| Material Grade | ADC12, A380 (customizable; such as AlSi10Mg, etc.) |
| Size Range | Length × Width × Height: 50 - 200mm × 50 - 200mm × 30 - 80mm (customizable) |
| Size Tolerance | Key mating parts: ≤ ±0.03mm; non-mating parts: ≤ ±0.1mm |
| Surface Roughness | Ra ≤ 1.6μm (upgrade to Ra ≤ 0.8μm finishing process) |
| Single Piece Weight | 150 - 500g (customized according to size) |
| Mechanical Properties | Tensile Strength ≥ 220MPa; Hardness ≥ 80HB |
| Heat Dissipation Performance | Thermal Conductivity: 96W/(m・K) (ADC12) |
| Corrosion Resistance Performance | Neutral Salt Spray Test ≥ 48h (after passivation treatment) |
| Environmental Standards | Compliant with RoHS Directive requirements |
Process manufacturing throughout the entire process
Based on customer drawings/samples, confirm material grades, structural details, tolerance standards, and surface treatment requirements
CAD/CAM software design, CNC precision machining + EDM electrical discharge forming, ensuring mold accuracy and structural compatibility
200-500T cold chamber die casting machine, 650-700℃ molten aluminum, 120-180MPa pressure injection, rapid cooling and forming
Mechanical initial removal + manual refinement of gate and burr, ensuring smooth edges without sharp edges or residual impurities
2D imaging instrument + three-coordinate measuring instrument for full inspection of key dimensions, data archived for traceability
Optional passivation / painting / sandblasting / anodizing, customizing appearance and performance improvement solutions as needed
Full inspection of appearance defects and mechanical properties, electrostatic protection bags + reinforced cardboard packaging suitable for transportation
Application fields covered
Household appliances
- Internal containment cavities for mini washing machines, underwear cleaning machines, and small dehydrators; ventilation and heat dissipation cover bodies
- Structural support components and heating module containment cavities for small ovens, air fryers, and health preservation pots
- Internal heat dissipation cavities and component fixation bases for hair dryers, curling irons, and beauty devices
- Internal heat dissipation cavities and component fixation bases for coffee machines and water dispensers
Industrial instruments
- Internal fixation cavities for temperature and humidity detectors, gas sensors, and water quality analyzers; heat dissipation shell modules
- Small PLC control cabinets, modular shell components of relay modules, terminal connection seat
- Lightweight enclosures for portable detection instruments and handheld industrial meters, internal structure support components
Electronic devices
- Internal heat dissipation cavities for signal repeaters, routers, and small servers; component fixation structures
- Enclosure components for smart home controllers and IoT terminal devices, installation bases
- Structural components for small vehicle-mounted electronic devices (such as vehicle recorders, vehicle chargers); heat dissipation modules
Customized Service Details
Structural Customization
Support adjusting product dimensions, hole layout, assembly method, reinforcement distribution, etc., based on the CAD/STEP/IGES format drawings provided by the customer.
Offer free structural optimization suggestions: Considering the characteristics of the die-casting process, optimize wall thickness uniformity, ejection angle, and hole position rationality, thereby improving the product's molding yield and performance.
Minimum Customization Order Quantity: For regular structures, an order of 500 pieces is required as the minimum. For special structures, the minimum order quantity can be negotiated and reduced.
Material Customization
Common Materials: ADC12 (high versatility, cost-appropriate), A380 (better mechanical properties)
Special Materials: AlSi10Mg (high strength, high toughness), AlSi9Cu3 (excellent corrosion resistance), AlMg5Si1 (lightweight + high corrosion resistance). Appropriate materials can be recommended based on the equipment usage scenarios (such as high temperature, high humidity, high load).
Surface treatment customization
| Surface treatment method | Core advantage | Applicable scenarios |
| Passivation treatment | Enhanced corrosion resistance, no appearance change, cost-effective | Internal hidden components, components used in humid environments |
| Electrostatic spraying | Customized colors (Pantone color matching), wear-resistant surface, strong decorative effect | Exposed equipment shells, components requiring specific color combinations |
| Sandblasting treatment | Matte and frosted texture, covering minor surface flaws | Internal precision components, components with a requirement for matte appearance on the outside |
| Anodizing | Enhanced hardness (≥300HV), excellent corrosion resistance, colorable | High-demand exposed components, handheld equipment components frequently in contact with the environment |
| Electrophoretic coating | Uniform coating, strong adhesion, excellent anti-corrosion effect | Complex structure components, outdoor-use equipment components |
Value-added services
· Mold development: We have our own mold workshop. The mold development cycle is 15 to 25 days. We also offer lifelong maintenance services for molds.
· Logistics Adaptation: Select the appropriate mode of transportation based on the order volume (express delivery for small items), logistics for large items, or full truckload transportation.

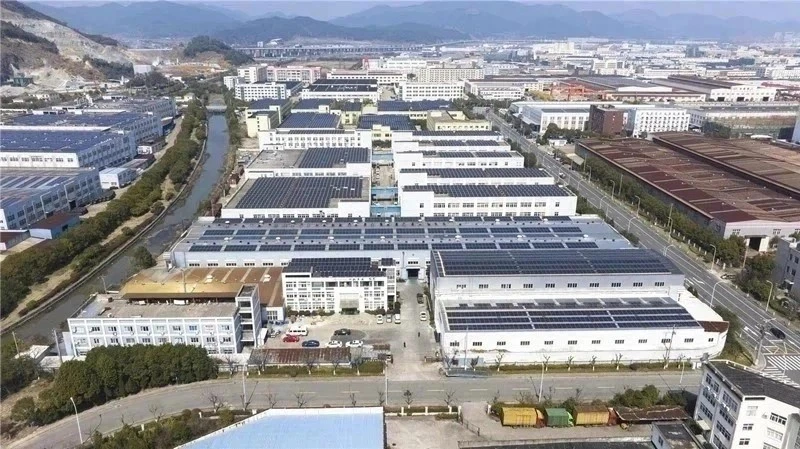

Ningbo Zhouchi Vehicle Industry Co., Ltd. was founded in 1992, located in Binhai Industrial Park of the beautiful coastal port city -Ningbo. Now our company covers the total area of 16000 square meters, with 150 staffs, including 20 quality inspectors and engineers. Our turnover is around12 Millions USD. Our company specializes in Aluminum Die-casting and Zinc Die-casting, CNC machining and assembling.
Quality Assurance
We have 100% quality guarantee to customers. We will be responsible for any quality problem.
Competitive Prices
We offer ODM service for customer with good quality and reasonable price.
12MLN
Estimated Turnover
150+
Professional Staff
100+
Annual Production of Molds
70%
For Export
our certifications
ISO 14001:2015
The ISO 14001:2015 certificate is an internationally recognized document that indicates that an organization has established, implemented, maintained, and continuously improved an environmental management system (EMS) that complies with the requirements of ISO 14001:2015.
This certificate certifies that the environmental management system of this organization has met international standards, enabling it to systematically manage its environmental responsibilities and commit to sustainable development.
IATF16949:2016
IATF 16949:2016 is an international standard for quality management systems in the automotive industry. It was developed by the International Automotive Task Force (IATF) and was released in October 2016, replacing the previous version of ISO/TS 16949:2009.
The core objective of IATF 16949 is to continuously improve, prevent defects, reduce variations and waste in the automotive supply chain. It aims to ensure that the design and manufacturing of automotive products (including components and materials) can always meet customer requirements and even exceed customer expectations.
our Partners
Our company has established long-term friendly and cooperative partnerships with Suzuki China factory, Peugeot China factory, Schneider Electric and other foreign and domestic well-known enterprises.
