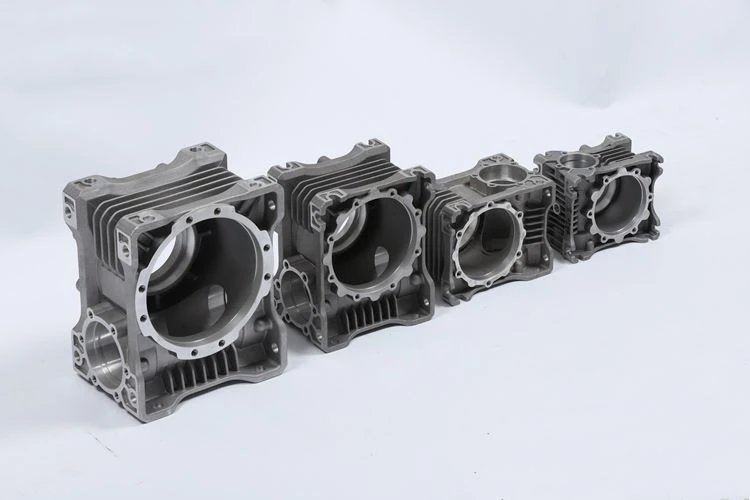

Gear Box

All gear box operate on a similar principle: the direction in which the gears rotate depends on the input direction and orientation of the gears. For example, if the initial gear is rotating in a clockwise direction, the gear it engages will rotate counterclockwise. This continues down the line for multiple gears.

The combination of different gear sizes and the number of teeth on each gear plays a significant role in the output torque and speed of the shaft. High gear ratios allow for more output torque and lower speeds, while lower gear ratios allow for higher output speed and less output torque.

A planetary gear box works in relatively the same way. A planetary gearbox system is constructed with three main components: a central sun gear, a planet carrier (carrying one or more planet gears) and an annulus (an outer ring). The central sun gear is orbited by planet gears (of the same size) mounted to the planet carrier. The planet gears are mated with the sun gear while the outer rings teeth mate with the planet gears.

There are several configurations for a gear box system. Typical configurations consist of three components: the input, the output and one stationary component. For example, one possible configuration utilizes the sun gear as the input, the annulus as the output, with the planet carrier remaining stationary. In this configuration, the input shaft rotates the sun gear, the planet gears rotate on their own axes, simultaneously applying a torque to the rotating planet carrier that in turn applies torque to the output shaft (in this case, the annulus).

The rate at which the gears rotate (gear ratio) is determined by the number of teeth in each gear. So, adding a 3:1 gearbox to a motor with a speed of 300 RPM would result in an output speed of 100 RPM, with the output torque increasing inversely and proportionally. The torque (power output) is determined based on both the number of teeth and which component in the planetary system is stationary.

When considering a gear box, many factors need to be considered to meet specific application requirements:

Gear Ratio
Gear ratios are defined as the correlation between the number of teeth of two or more different gears. Typically, the number of teeth a gear has is proportional to its circumference. This means that the gear with a larger circumference will have more gear teeth. The relationship between the circumferences of the two gears can also give an accurate gear ratio. For example, if one gear has 36 teeth while another gear has 12 teeth, the gear ratio would be 3:1.

Output Torque
Output torque depends on the gear ratio used. To obtain a high output torque, a high gear ratio should be selected. This will lower the output shaft speed of the motor. Inversely, using a lower gear ratio will result in a smaller output torque value being delivered into the system, with a greater motor speed at the output shaft. This principle illustrates the inversely proportional relationship between torque and speed.

Speed (RPM)
Speed is inversely proportional to the system's gear ratio. For example, the more teeth there are on the output gear, the faster the output shaft will be. Conversely, the more gear teeth there are on the output compared to the input, the slower the output shaft will be. The output speed can be determined by dividing the input speed by the gear ratio. The higher the ratio, the lower the output speed.

Gear Arrangement
Gear arrangement offers various benefits over the traditional fixed axis gear system design. The unique combination of both power transmission efficiency and compact size allows for a lower loss in effectiveness. The more efficient the gear arrangement, (i.e. spur, helical, planetary and worm) the more energy will be transmitted and converted into torque, rather than energy lost as heat.

Another application factor to be taken into account is load distribution. Since the load being transmitted is shared among multiple planets, the torque capacity is increased. The higher number of planets in a gear system will increase the load ability and enhance torque density. Gear arrangements improve stability and rotational stiffness by creating a balanced system.

Backlash
Backlash is the angle at which the output shaft of a gearbox can rotate without either the input shaft or the gap between the teeth of two adjacent gears moving. It is not necessary to consider backlash for applications which do not involve load reversals, however in precision applications with load reversals (robotics, automation, CNC machines, etc.) backlash is crucial for accuracy and positioning.

Ensure that the gear box meets the manufacturer's thermal and mechanical specifications and is not used beyond its design specifications, especially regarding input power.

Proper lubrication, as recommended by the manufacturer, should be filled into the gear box before installation, with particular attention paid to oil cups for vertical-mounted gearboxes.

The breather must be kept clean, and the appropriate type should be used. Before connecting the gear box and motor, clean their mating surfaces and ensure that the gearbox is rust-treated.
The alignment of gear box and motor shafts, whether solid or hollow, is critical, and the size of the coupling for input and output shafts should be checked before fitting. Tight bore tolerance for couplings and shafts is crucial in preventing heavy force fits or press-fits.

Check the gear box for noise, vibration, leakage, and temperature before connecting it to the load, as the manufacturer strictly tests it for these parameters to avoid problems.

To prevent movement of the gear box and motor, use stoppers for foot-free (solid input) gearboxes. Improper locking of coupling on shaft-mounted gearboxes may lead to vibrations.

Tyre couplings are flexible and can compensate for significant angle errors, dampening vibration and impact, making them ideal for foot-free gear box.
